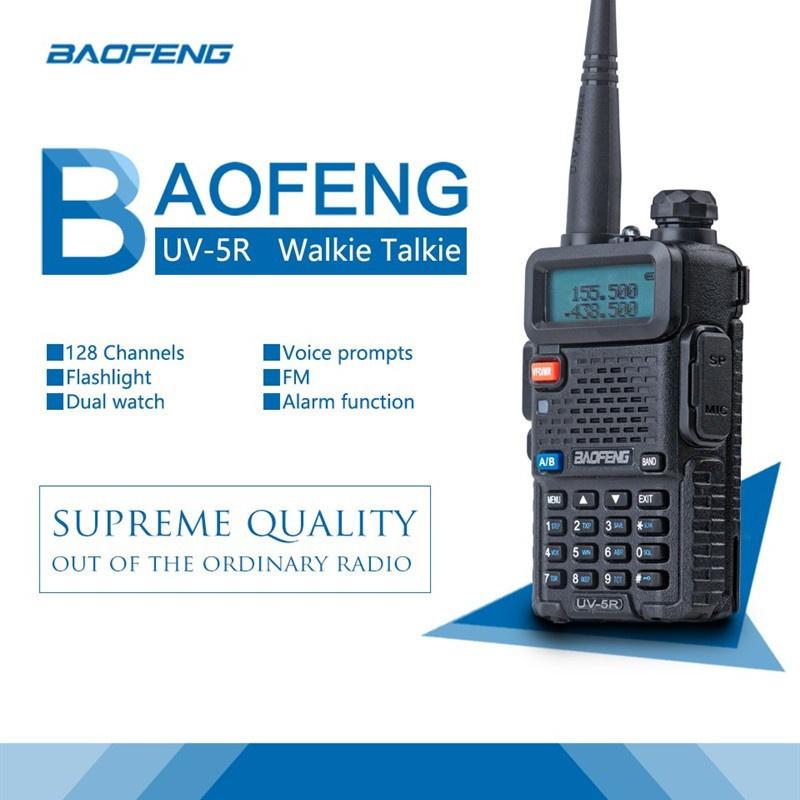

2021 New BAOFENG UV-5R Dual Band UHF/VHF Two Way Ham FM Radio+Speaker Mic Walkie Talkie [<lun>]
The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
Functions:
1. Frequency Range: 136-174 / 400-520 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10.Hight /Low RF Power Switchable
11.25KHz/12.5KHz Switchable
12.Emergency Alert
13.Low Battery Alert
14.Battery Saver
15.Time-out Timer
16.Keypad Lock
17.Monitor Channel
18.Channel Step: 2.5/5/6.25/10/12.5/25KHz
19.ROGER SET
General
Frequency Range:65-108MHz (FM Receive only), 136-174 MHz and 400-520 MHz (TX/RX)
Channel No.:128
Frequency Stability:±2.5ppm
Antenna:High gain Dual-Band Antenna
Antenna Impedance:50Ω
Operating Voltage:DC 7.4V
Mode of operation:Simple or semi-duplex
Dimension W x H x D:100 x 52 x 32 mm
Weight:250g
Transmitter
Output power:4W / 1W (Max 5W)
Modulation Mode:16kΦF3E / 11kΦF3E
Maximum deviation:5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation:7μW
Adjacent Ch. power:≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics:6dB
Current:≤1.6A(5W)
CTCSS/DCS deviation:0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity:8-12mv
Intermediation distortion:10
Package:
1 x BaoFeng UV-5R (VHF136-174MHz / UHF 400-520MHz) Two-Way Radio
1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x adapter
1 x Desktop Charger ( 100V 240V )
1 x Speaker Mic [2021-02-20 15:28:15 lun OTS30119baidskdfnjdf]
